Built, finished and located in Queensland, ready for handover.
1 / 25

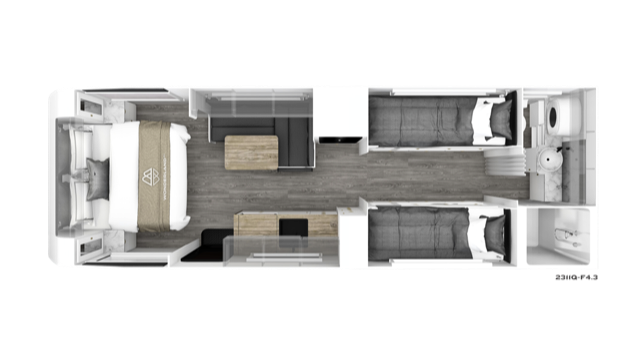

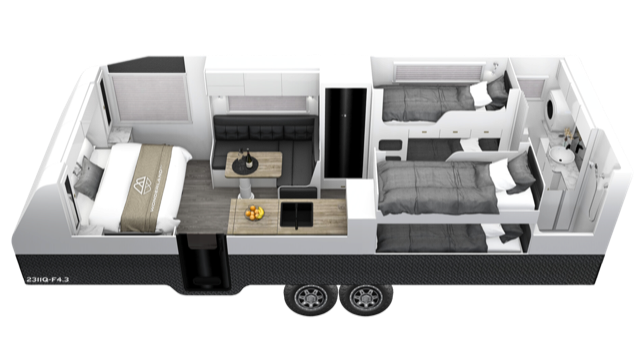

The 2311Q-F4.3 layout.
Standard specification for the XTR range. This van may include additional optioned upgrades, confirm the exact build with our team.
STANDARD CHASSIS
| A-Frame, riser and chassis | 6″ extended A-frame, 12″ truss chassis |
| Axle | Tandem |
| Suspension | Cruisemaster ATX Level 5 BCS Airbag Suspension System – 4.5T Load Capacity |
| Brakes | Disc brakes |
| Bumper | Rear bumper box with drawer, 2 x jerry can holders, woodbox and taillights (where available) |
| Chassis finish | Textured 2K PU black coating or; Hot-dip galvanised |
| Chassis skid plates and recovery points | 2 x chassis skid plates and recovery points |
| Hitch type | DO45 by Cruisemaster recessed and 4.5T chains |
| Jockey wheel | BOS 60mm black ops 3 rib jockey unit with 8″ double wheel or; BOS 50mm 3 rib jockey unit with 8″ double wheel |
| Stabilising legs | Drop down corner stabilisers |
| Step | Double aluminium step |
| Water tank / jerry can holder | 2 x rear bar water tank/jerry can holders |
STANDARD EXTERIOR
| Awning | Dometic 8700 grey awning with black arms |
| BBQ bayonet and tap | 1 x gas bayonet plus 1 x cold tap and 1 x hot tap at tunnel boot |
| Gas bottles | 2 x 4kg powdercoated gas bottles |
| Dust reduction vent | CS pressure – 12V powered dust reduction |
| External slide-out kitchen at front tunnel boot | K5i Weber BBQ provision, sink & portable induction in black |
| Outdoor pantry | Outdoor pantry with drop down picnic table, GPO & USB, entertainment pack and airbag controls if applicable |
| Spare wheel with holder | 1 x matching spare wheel with holder |
| Alloy plate / side protection | 850mm X-Guard PU textured flat plate in black |
| Cladding colour – side | Various |
| Construction | Composite one-piece wrap-around front, roof and back wall, with SPR aluminium side frames |
| Entry door | Black 1750 × 622 entry door with three locks, separate midge-screen security door and concertina blind |
| Floor | PP honeycomb floor |
STANDARD INTERIOR
| Air Conditioner | Dometic FreshJet Z – 7 series lite 3kW inverter roof-top air conditioner |
| Cooker | Multi-function cooker, fryer, grill & microwave in base cupboards & portable induction cooktop |
| Fans | 2 x black or white Sirocco II fans |
| Fridge | 220L dual-hinge compressor fridge (2 way) |
| Heating and hot water service | Hydronic diesel hot water service and heater (gasless) |
| Rangehood | Swift flush mount recessed rangehood with dual fan |
| Washing machine | 3kg – 3.5kg washing machine |
| Accessories pack | Towel hooks, hand towel rails, bath towel rails – black |
| Shower and toilet hatch and exhaust fan | 2 x Ranger 12V shower hatches with LED lights, exhaust fans and removable fly screens |
| Shower screen frame | Silver, black or white |
| Sink | Ceramic black or white ensuite bowl – round |
| Tapware | Bathroom mixer tap in brushed stainless, black, white, brass gold and rose gold colours. |
STANDARD ELECTRICAL
| Anderson plug | 1 x grey Anderson plug, 1 x yellow portable solar input |
| Electrical system | Choose from: Victron 12V off-grid system with Touch70 display. Includes dual 50A MPPT, 50A DC charger, 120A AC / 3000VA inverter-charger, 1000W solar, 900Ah lithium battery, with a behind-the-fridge installation. Victron 24V off-grid system with Touch70 display. Features 100/50A MPPT, 30A DC charger, 120A / 5000VA inverter-charger, 1000W solar, and 11kWh battery, with a behind-the-fridge installation. |
| External GPO | Dual 240V GPOs above tunnel boot and picnic table |
| Lighting – external | 6 External Lights: 17″ light bars front and rear, 3 x insect repellent 2 stage LED lights on doorside including the BBQ and 1 on roadside |
| Lighting – internal | Kitchen sink light, Bathroom sink light, Shower light, Roof LED 3″ downlights |
| Media | Fusion audio and speakers (RA670) includes AM-FM radio, AUX, USB, Bluetooth and smartphone connectivity, 2 x Fusion internal speakers, Fusion soundpanel external speaker |
| Mood lighting and step light | Amber |
| Starlink provision | Starlink internet provision |
| Tow plug | 12 pin |
| TV | 24″ Smart TV |
| TV antenna | Omni Winegard / Cowfish TV antenna |
| Charging outlets | At seats, robes, bunks and external entertainment pack |
STANDARD WATER
| External shower | 1 x external shower |
| Grey water bypass | Grey water bypass |
| Tank – drinking water | 1 x 90L drinking water tank |
| Tank – fresh water | 2 x 90L – 100L fresh water tanks |
| Tank – grey water | 1 x 100L grey water tank (at rear) |
| Water filler and mains | Separate water tank filler & cap per tank (where available) |
| Water tank gauge | 1 per tank |
