Built, finished and located in Queensland, ready for handover.
1 / 25

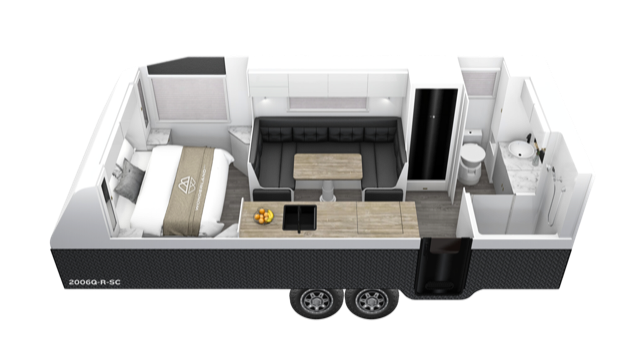

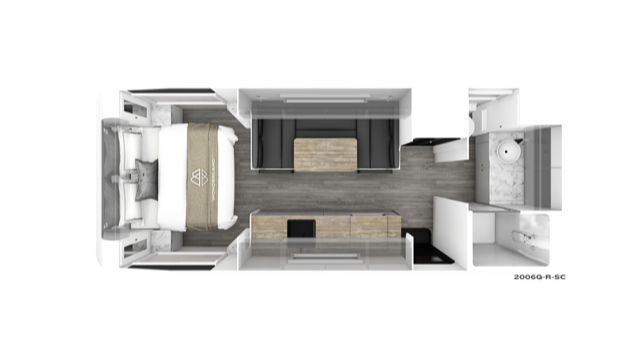

The 2006 layout.
Standard specification for the Solara range. This van may include additional optioned upgrades, confirm the exact build with our team.
STANDARD CHASSIS
| A-Frame, riser and chassis | 6″ x 1950mm A-Frame & Double 4+4″ Chassis & Wheelbox Riser (Flat Floor) |
| Suspension | Cruisemaster XT Level 3 Manual Airbag Suspension Kit – 4.5T Load Capacity |
| Brakes | 12″ drum brakes |
| Bumper | 4-arm bumper bar |
| Chassis finish | Hot-dip galvanised or; Textured 2K PU black coating |
| Hitch Type | DO35 by Cruisemaster recessed |
| Jockey wheel | AL-KO 8″ wide large clamp 629915 |
| Stabilising legs | Drop down corner stabilisers |
| Step | Double aluminium step |
| Wheels and tyres | Dirty-Life Theory 16″ 6×139 ET20 & 285/75R16 Cooper AT3 |
STANDARD EXTERIOR
| Awning | Large Dometic manual 8700 grey with black arms |
| BBQ bayonet | 1 x gas bayonet plus 1 x cold tap at tunnel boot |
| Dust reduction vent | CS pressure – 12V powered dust reduction |
| Gas bottles | 2 x 4kg powdercoated gas cylinders |
| Jack | Caravan jack and brace |
| External Pantry | Outdoor pantry with drop down picnic table. Complete with LED light, GPO, USB, entertainment pack & airbag controls. |
| Spare wheel with holder | 1 x matching spare wheel with holder |
| Construction | Frameless composite sandwich panel construction |
| Cladding colour – side | White |
| Entry door | White 1850×622 CaraD Dometic door |
| Floor | PP honeycomb floor |
| Insulation | Incorporated in sandwich panel (XPS Insulation) |
STANDARD INTERIOR
| Air Conditioner | Dometic FreshJet Z – 7 series lite 3kW inverter roof-top air conditioner |
| Cooker | Portable induction Cooktop with Multi-Function Cooker / Fryer / Microwave in Base Cabinet & Drawer |
| Fans | 2 x Sirocco fans |
| Fridge | 220L dual-hinge compressor fridge (2 way) |
| Heating and hot water service | Hydronic diesel hot water service and heater (gasless) |
| Rangehood | Swift flush mount recessed rangehood with dual fan |
| Washing machine | 3kg – 3.5kg washing machine |
| Accessories pack | Chrome Ensuite Tap, Chrome Shower Rail & Brushed Stainless Bathroom Accessories |
| Shower and toilet hatch and exhaust fan | 2 x Ranger 12V shower hatches with LED lights, exhaust fans and removable fly screens |
| Shower screen frame | Silver, black or white |
| Sink | Black or white ceramic round ensuite bowl |
| Tapware | Brushed stainless bathroom mixer tap |
STANDARD ELECTRICAL
| Anderson plug | 1 x Grey Anderson Plug & 1 x Grey 12V / Yellow 24V / Blue 48V Portable Solar Input |
| Electrical systems | Choose from: Redarc Alpha 75 off-grid system with a behind-the-fridge installation, providing 75A via solar/DC/AC, 3000W inverter, 1000W solar, and 400Ah lithium Nexus & Victron off-grid system with Touch70 display and behind-the-fridge installation. Includes dual 50A MPPT, 50A DC charger, 120A AC / 3000VA inverter-charger, 1000W solar, and 400Ah lithium battery for advanced energy control. |
| External GPO | Dual 240V GPOs above tunnel boot and drop down picnic table |
| Lighting – external | 6 External Lights: 17” light bars front and rear, 3 x insect repellent 2 stage LED lights on doorside including the BBQ and 1 on roadside |
| Lighting – internal | Kitchen sink light, bathroom sink light, shower light and roof LED 3″ downlights |
| Media | Fusion audio and speakers (RA670) includes AM-FM radio, AUX, USB, Bluetooth and smart phone connectivity; 2 x Fusion internal speakers and Fusion soundpanel external speaker |
| Mood lighting & step light | Amber |
| Starlink Provision | Starlink internet provision |
| Tow plug | 12 pin |
| TV | 24″ Smart TV |
| TV antenna | Omni Winegard / Cowfish TV Antenna |
| Charging Outlets | USB & USB-C at seats, robes, bunks and external entertainment pack |
STANDARD WATER
| External Shower | 1 x external shower |
| Grey water bypass | Grey water bypass |
| Tank – Drinking Water | 1 x 90L drinking water tank (above axles) |
| Tank – Fresh Water | 2 x 90L-100L fresh water tanks |
| Tank – Grey Water | 1 x 100L grey water tank |
| Water filler and mains | Quick fill and mains connection and 1 separate filler and cap |
